When your check engine light suddenly appears on the dashboard, it’s easy to feel overwhelmed. The light can signal anything from a loose gas cap to a serious engine malfunction. That’s where diagnostic scans come in. But how accurate are they? Can a diagnostic tool actually tell you exactly what’s wrong with your vehicle?
Let’s explore how modern automotive diagnostics work, what they can tell you, and why professional interpretation is key.
What Is a Diagnostic Scan

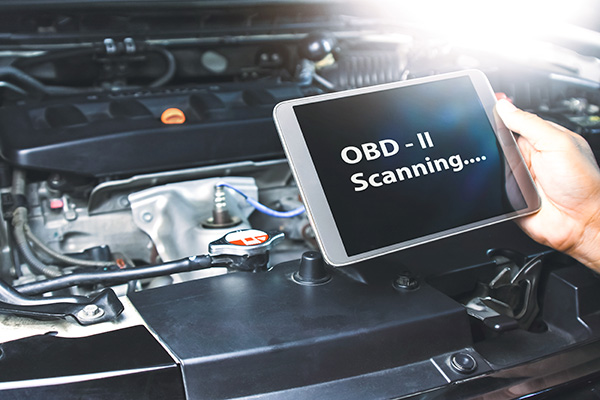

A diagnostic scan is performed using a tool called an OBD-II (On-Board Diagnostics) scanner. This device connects to a port in your vehicle and reads stored trouble codes that the car’s onboard computer generates when it detects something abnormal.
These codes are usually labeled with a letter and a series of numbers (like P0301), which correspond to specific systems or types of malfunctions. Once a code is retrieved, a technician uses it as a starting point for further inspection and testing.
What a Diagnostic Scan Can and Can’t Do
A scan tool is incredibly helpful, but it doesn’t tell the full story by itself.
For example, a code might indicate “misfire detected in cylinder 3,” but it won’t specify why that misfire is happening. The cause could be a bad spark plug, a clogged fuel injector, or even a worn valve. In that sense, a diagnostic scan is more like a roadmap—it points you in the right direction but doesn’t give you the full picture.
That’s why diagnostic scans should always be followed by visual inspections and functional tests by a qualified technician.
Why a Check Engine Light Should Never Be Ignored
It’s tempting to keep driving when your check engine light comes on, especially if your car still seems to run fine. However, that warning light indicates that your car has detected an issue that requires attention. Sometimes it’s a simple issue, but it could also be something more serious that, if ignored, could damage your engine or emissions system.
Driving for too long without addressing the root cause can also result in more codes being triggered, which can make the problem harder to isolate later.
How Technicians Do Diagnostic Scans
Our skilled technicians use scan data in combination with hands-on diagnostics. Once a trouble code is pulled, they check relevant components and systems manually. For instance, if the scan suggests a sensor is faulty, they’ll test the sensor’s output, examine its connections, and compare performance data before deciding whether to replace it.
Good diagnostic work often involves interpreting live data, such as fuel trim levels, oxygen sensor readings, or coolant temperature values. This helps confirm whether the system is operating within normal ranges.
Are All Scanners The Same
Not all diagnostic tools offer the same level of detail. Basic code readers used at some retail parts stores can read generic codes but lack the ability to access deeper system data.
Professional-grade scanners, like those used in trusted auto repair shops, are far more advanced. These can interface with manufacturer-specific systems, reset adaptive learning parameters, and provide real-time performance metrics. That’s especially important for diagnosing modern vehicles, where everything from transmission behavior to steering response is computer-controlled.
When a Diagnostic Scan Is Most Valuable
A diagnostic scan is most helpful when used as part of a complete inspection. It’s a fast and effective way to pinpoint the source of the issue, saving time and improving repair accuracy.
Even if your vehicle doesn’t seem to have problems, a scan can sometimes catch issues before they become noticeable. This is particularly useful before long road trips or as part of a routine maintenance check.
